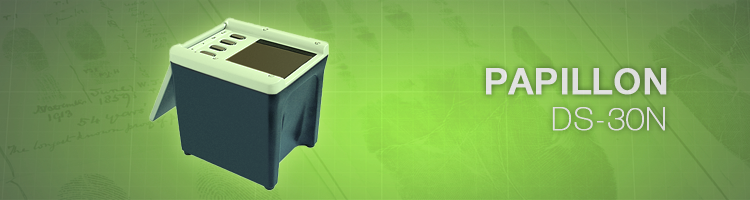

Key Features and Specifications:

Resolution of resulting images	500 ppi (500 pixels per inch)
Dynamic Range	8 bpp (8 bit per pixel)
Signal–To–Noise Ratio	Minimum: 40 db
Sensing Area	1 platen for rolling and taking plain impressions of fingers
Scan Area	86 x 78 mm
Image Size (Maximum): - Rolled or Flat Fingerprint - Plain Four Finger Impressions	45 x 40 mm 86 x 78 mm
Time for scanning a fingerprint	4 seconds (for touchprint – 2.5 seconds)
FBI's Requirements Compliance	Compliant to the FBI's "IAFIS Image Quality Specification": CJIS-TD-0110; CJIS-RS-0010 (v7) app. F
Compensation for smears at rolling	Yes
Elastic Coating (Membrane)	Yes
Moisture Discrimination	Yes
Interface	USB 2.0 (480 Мbit/sec)
Power Supply	5 V(USB) or 12V (adapter ~220 V, 50 Hz)
Power Input	Maximum: 2.5 Watt
Scanner Size (W x D x H)	138 x 160 x 160 mm
Scanner Weight	2.5 kg
Self-contained Keypad	Yes
LCD Monitor:	No
Operating Systems	Windows, Linux
Application Software	PAPILLON LIVE SCANNER, PAPILLON FILTER, PAPILLON SDK
