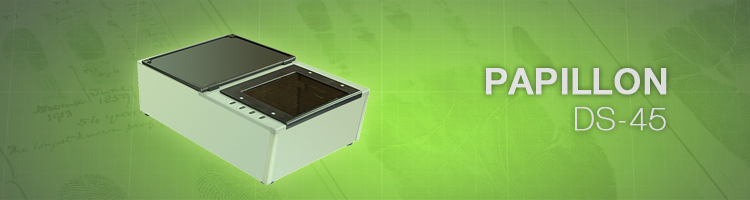

PAPILLON DS-45

  • The difference between DS-45 and DS-45M is that the latter is equipped with a built-in color LCD display
  • The information displayed on the computer monitor during the process of taking fingerprints is duplicated on an embedded LCD display of the DS-45M scanner.

  • Such constructive solution enables you to:

  • Easily control the process of taking fingerprints and palmprints (the operator does not use the monitor of the workstation – it is the scanner’s display that helps the operator to concentrate upon the fingerprinting process only) arrange a detached place for taking fingerprints and palmprints.
  • The scanner can be installed in a 5 m distance from the workstation computer.
  • To enter all necessary descriptive information associated with the case and mug shots, the operator uses the workstation monitor and the keyboard, while the scanner LCD display to manage the process of fingerprinting. Such work site arrangement does not allow a person fingerprinted to see the workstation desk and screen contents.
  • Key Features and Specifications:
    Resolution of resulting images 500 ppi (500 pixels per inch)
    Dynamic Range 8 bpp (8 bit per pixel)
    Signal–To–Noise Ratio Minimum: 40 db
    Sensing Area 1 large platen for rolling and taking plain impressions of fingers and palms
    Scan Area 132 x 130 mm
    Image Size (Maximum):
    - Rolled or Flat Fingerprint
    - Plain Four
    - Finger Impressions
    - Palmprint Impression
    42 x 41 mm
    132 x 130 mm
    132 x 130 mm
    Time for scanning a fingerprint 5 seconds (for touchprint – 3 seconds)
    FBI's Requirements Compliance Compliant to the FBI's "IAFIS Image Quality Specification": CJIS-TD-0110; CJIS-RS-0010 (v7) app. F
    Compensation for smears at rolling Yes
    Elastic Coating (Membrane) Yes
    Moisture Discrimination Yes
    Interface USB 2.0 (480 Мbit/sec)
    Power Supply 12 V (adapter ~220 V, 50 Hz)
    Power Input Maximum: 8 Watt
    Scanner Size (W x D x H) 240 x 405 x 127 mm
    Scanner Weight 9 kg
    Self-contained Keypad Yes
    LCD Monitor: No
    Operating Systems Windows, Linux
    Application Software PAPILLON LIVE SCANNER, PAPILLON FILTER, PAPILLON SDK
